Lambda(λ) Series7772 Model

Conductivity Analyzer 7772

-DC Power Supply Type-

【Features】
◆ LED visual display (water quality & temperature)
◆ Quick response
◆ Temperature compensation
◆ Alarm output

Specifications
Model 7772 - C - 3L- A2
Measurement range
(Temperature compensation value)
0 ~ 3.0 μS / cm
Rang of water temperature 5 ~40℃
Temperature compensation Digital temperature compensation
Display Water quality : Top line , LED ( Green, Orange, Red)
Temperature : Button line , LED (Green, Red)
Error : out of range, temperature element failure, open circuit between electrodes Alarm : LED, buzzer
Power supply DC 5V ±5% Max.1A (AC adapter)
Power consumption Max. 2VA
Operating environment Temperature : 0 ~ 50℃ Humidity : 5 ~ 80%RH ( no condensation)

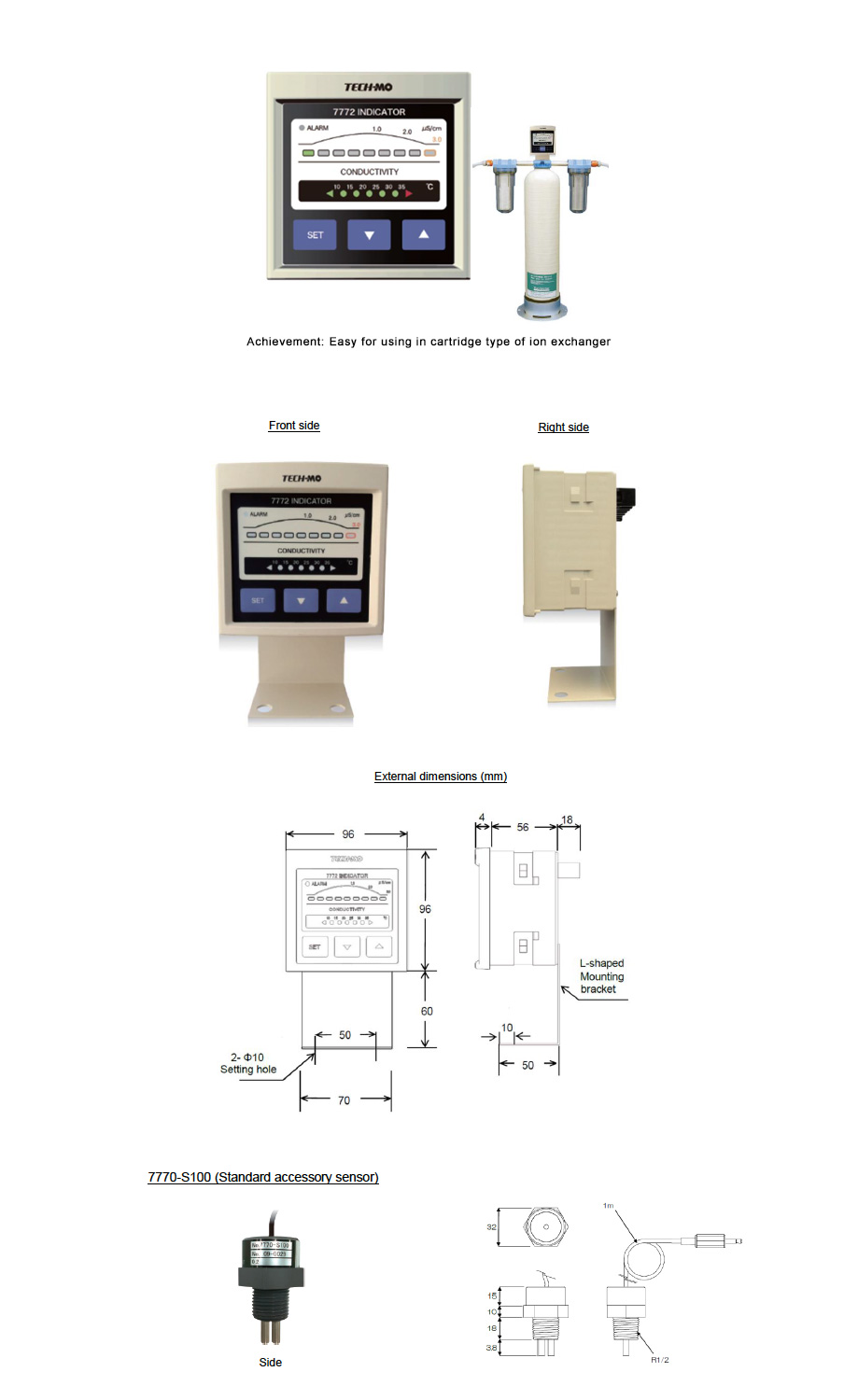

External dimensions 96 mm(H) × 96(W) mm× 86mm (D)
Installation L-shaped mounting bracket
Panel mounting bracket (Dimension of cutting hole 92 × 92 mm) (Option)
Compatible sensor 7770-S100
Cable length : 1m ( 4-electrode jack connection)
Outter case : PVC (polyvinyl chloride) Electrode : SUS316
Cell constant : 0.2 cm-1 , Connector: R1/2 , Operating pressure : Max. 0.5Mpa
Accessories 7770-S100
L-shaped mounting bracket , Mounting screw × 2 , Mouting bolt × 2 AA-sized battery ×2, Instruction manual , Inspection report
